DIN 976-1 / DIN 975 / ISO 16048 / GB/T 15389 / ASME B18.31.3 Stud Bolts / Threaded Rods 4.8, 8.8, 10.9, 12.9 Plain, Zinc Plated, Hot Dip Galvanized, Black Oxide
Collapse Images

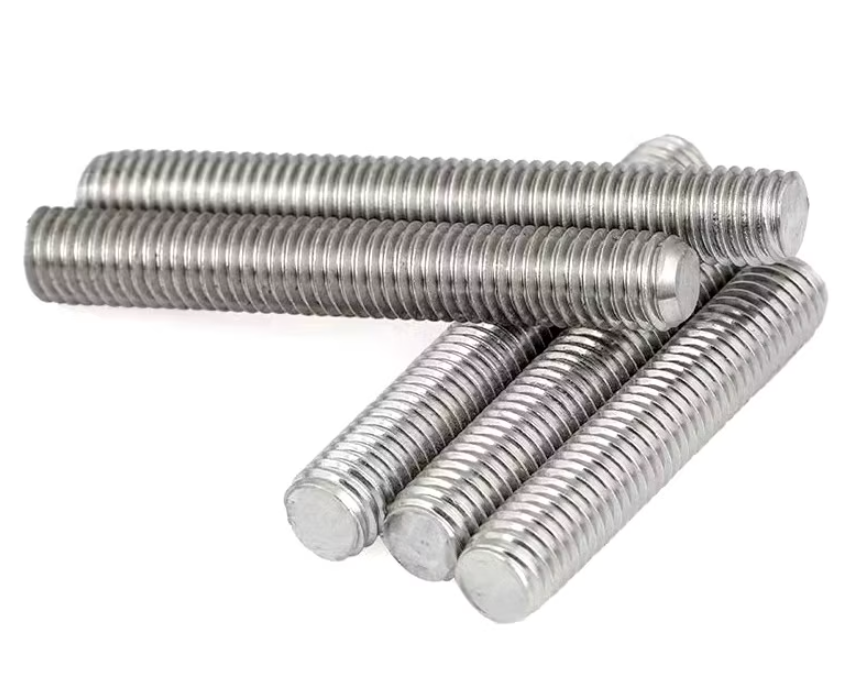

DIN 976-1 / DIN 975 / ISO 16048 / GB/T 15389 / ASME B18.31.3 Stud Bolts / Threaded Rods 4.8, 8.8, 10.9, 12.9 Plain, Zinc Plated, Hot Dip Galvanized, Black Oxide

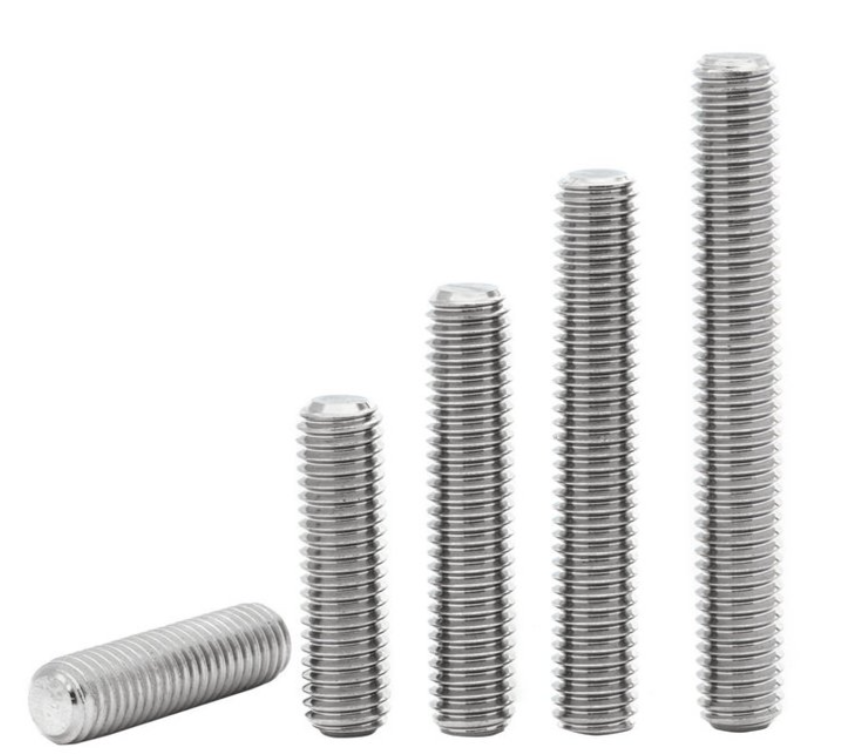

DIN 976-1 / DIN 975 / ISO 16048 / GB/T 15389 / ASME B18.31.3 Stud Bolts / Threaded Rods 4.8, 8.8, 10.9, 12.9 Plain, Zinc Plated, Hot Dip Galvanized, Black Oxide

Standard

DIN 976-1 / DIN 975 / ISO 16048 / GB/T 15389 / ASME B18.31.3

Specification

M2 - M60

Material

Carbon Steel / Stainless Steel(SS304/SS316)

Property Class

4.8, 8.8, 10.9, 12.9

Finish

Plain, Zinc Plated, Hot Dip Galvanized, Black Oxide

Product Description

Fully threaded, Type A (without chamfer,DIN 975) or Type B (with chamfer)

Technical Data & Drawings
Model: DIN 976-1 / DIN 975 / ISO 16048 / GB/T 15389 / ASME B18.31.3 Stud Bolts / Threaded Rods pdf
Dimension CodeSpecification (mm)
d
P
L
L (max)
L (min)

Technical Specifications

DIN 976-1-2016 Stud Bolts / Threaded Rods
Product No.
DIN 976-1
Product Specification
M2 * 5
Product Standard
DIN 976-1-2016
Material Grade
—
Unit
mm
Mechanical Property
—
Dimension CodeSpecification (mm)Dimension CodeSpecification (mm)
dDiameterM2PPitch0.4
LLength5L(max)Lmax5.24
L(min)Lmin4.76
Other Requirements
Technical Conditions
MaterialTypeSteelGeneral Technical Conditions
Grade
ThreadToleranceMechanical PropertyClass
StandardStandard
ToleranceProduct GradeSurface Treatment
Standard
Surface RoughnessSurface Defect
Acceptance & PackingReference Weight per 1000 (kg)
