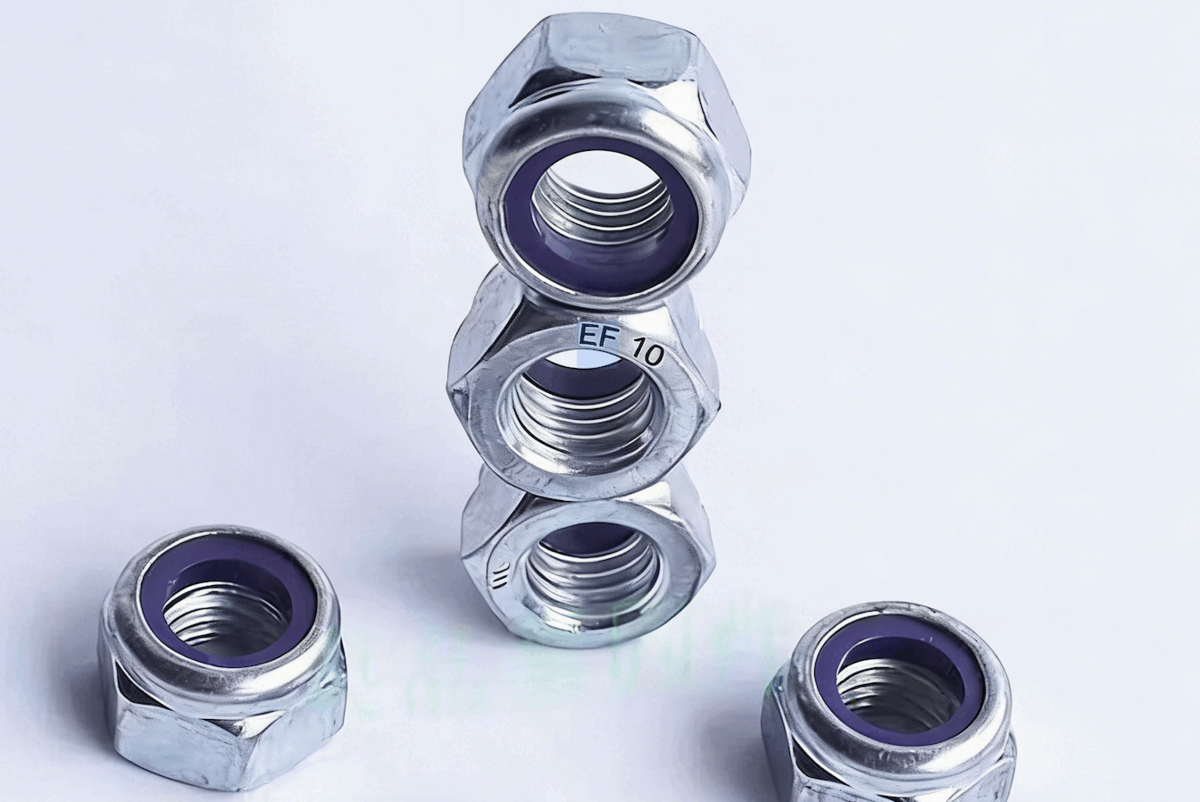

DIN 985/ ISO 10511 / UNI 7474 Nylon Insert Self locking Nut 6, 8, 10 Zinc Plated (Blue/White/Yellow)
Collapse Images
DIN 985/ ISO 10511 / UNI 7474 Nylon Insert Self locking Nut 6, 8, 10 Zinc Plated (Blue/White/Yellow)
DIN 985/ ISO 10511 / UNI 7474 Nylon Insert Self locking Nut 6, 8, 10 Zinc Plated (Blue/White/Yellow)

Standard

DIN 985/ ISO 10511 / UNI 7474

Specification

M3 - M48

Material

Carbon Steel / Stainless Steel(SS304/SS316)

Property Class

6, 8, 10

Finish

Zinc Plated (Blue/White/Yellow)

Product Description

Technical Data & Drawings
Model: DIN 985/ ISO 10511 / UNI 7474 Nylon Insert Self locking Nut pdf
Dimension CodeSpecification (mm)
d
P
e (min)
h (max)
h (min)
k (min)
s (max)
s (min)

Technical Specifications

DIN 985-1987 Nylon Insert Self locking Nut
Product No.
DIN 985
Product Specification
M3
Product Standard
DIN 985-1987
Material Grade
—
Unit
mm
Mechanical Property
D≤M39：10、5.6、8； D＞M39：custom / DIN 267-4
Dimension CodeSpecification (mm)Dimension CodeSpecification (mm)
dDiameterM3PPitch0.5
e(min)emin6.01h(max)hmax4
h(min)hmin3.7k(min)kmin2.4
s(max)smax5.5s(min)smin5.32
hHeight3.7–4
Other Requirements
Technical Conditions
MaterialTypeSteelGeneral Technical Conditions
Grade
ThreadTolerance6HMechanical PropertyClassD≤M39：10、5.6、8； D＞M39：custom
StandardDIN 13-12、DIN 13-15StandardDIN 267-4
ToleranceProduct GradeD≤M16：A； D＞M16：BSurface Treatment不经处理； 电镀技术要求按DIN 267-9
StandardDIN ISO 4759-1
Surface RoughnessDIN 267-2Surface DefectDIN 267-20
Acceptance & PackingDIN 267-5Reference Weight per 1000 (kg)

Packaging & Delivery

Inner Packaging

Small boxes (white/blue or EternalFast branded) with clear labeling.

Bulk packaging in heavy-duty plastic bags (25kg per bag) to prevent moisture.

Outer Packaging

Standard Export Cartons (36×24×16 cm or similar).

Net Weight: 25kg per carton.

Gross Weight: ~25.5kg.

Palletization & Protection

Euro Pallets / Fumigation-free Pallets:

Dimensions

800×1200 mm or 1000×1000 mm or customed.

Safety Reinforcement

Wrapped in Stretch Film for moisture protection.

Reinforced with Plastic/Steel Strapping.

Corner protectors to prevent carton crushing.


Shipping & Delivery

Loading Ports

Shanghai Port / Ningbo Port

Lead Time:

Stock items: 3-7 days.

Custom production: 15-30 days (depending on quantity and surface treatment).

Quality & Certificates

Material & Performance Certifications

  • Raw material Mill Test Certificate (MTC)
  • Material certification
  • Hardness & Tensile test report
  • Dimensional inspection report

Quality System

  • ISO 9001 Quality Management System
  • Strict quality control before shipment
  • Full inspection available upon request
